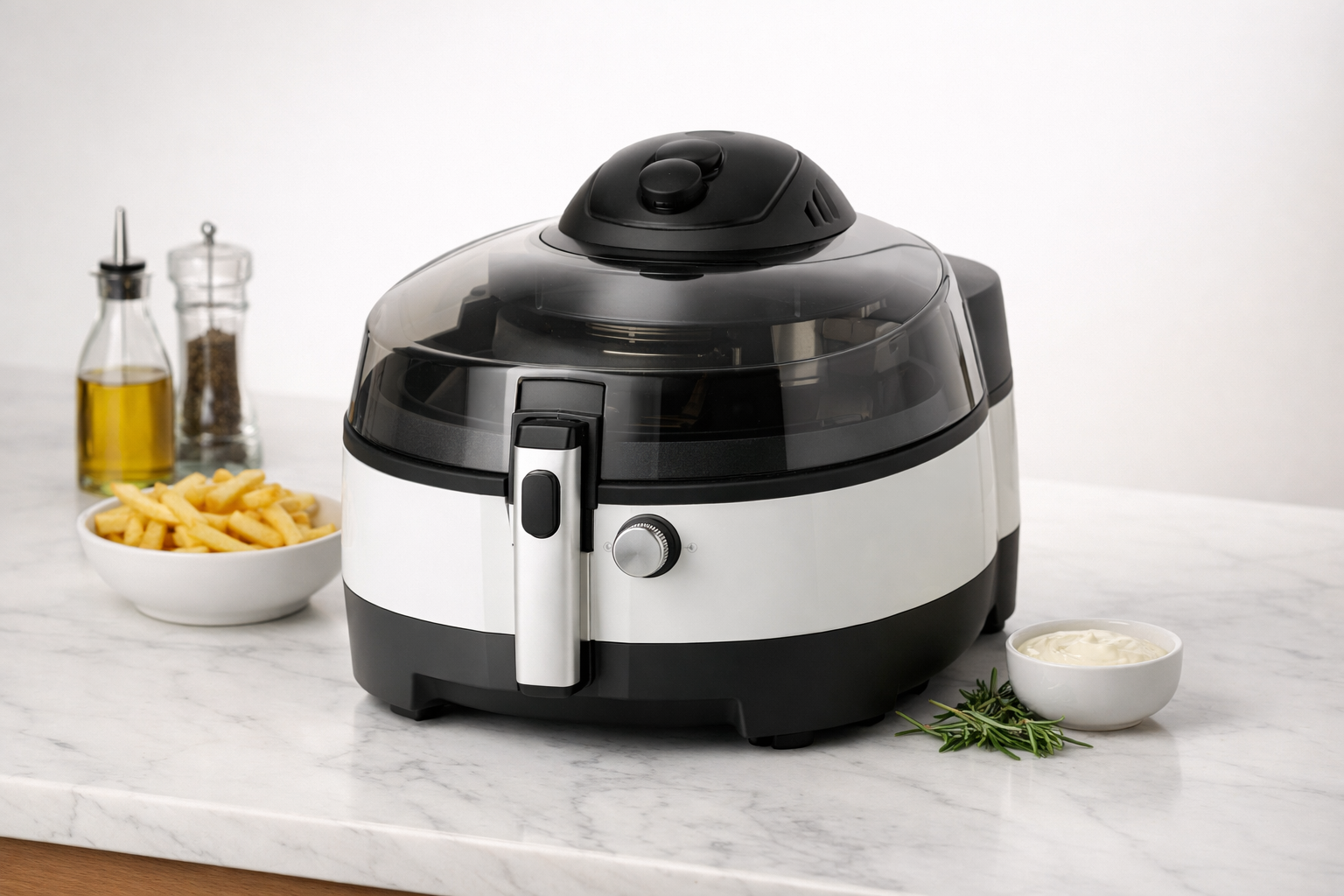

Bottom line: the De’Longhi MultiFry FH1130/1 is a bowl-style hot-air multicooker with a removable stirring paddle, ceramic-coated bowl and simple on/off operation. Its useful capacity is documented by food weight—up to 1.5 kg of fresh potatoes or 1.25 kg of frozen potatoes—rather than by a litre figure.
This is a specification-led ownership guide based on De’Longhi’s current FH1130 support centre, official FH1130/FH1100 instructions and current accessory listings. We have not hands-on tested this appliance.
- FH1130/1 specifications at a glance
- How the FH1130/1 actually operates
- Capacity and manufacturer cooking times
- When to use the paddle
- Safe setup and first use
- Cleaning without damaging the ceramic coating
- Exact replacement bowls and model checks
- Troubleshooting common symptoms
- The appliance does not start
- The paddle is not turning
- The timer reached zero but cooking continued
- Food browns unevenly
- Used-buying checklist
- Verdict
- Frequently asked questions
- What is the FH1130/1 capacity?
- Should I preheat the FH1130/1?
- Does the timer turn the appliance off?
- Can the bowl go in the dishwasher?
- Which replacement bowls fit FH1130/1?
FH1130/1 specifications at a glance
| Detail | Verified FH1130 information | What it means |
|---|---|---|
| Fresh potato maximum | 1.5 kg, unpeeled weight | A recipe limit for fresh chips, not a bowl-volume claim. |
| Frozen potato maximum | 1.25 kg | The manual’s table specifies no added oil for frozen chips. |
| Bowl | Ceramic-coated, with removable paddle | Suitable for stirred and non-stirred cooking. |
| Controls | On/off button; removable timer on equipped variants | There is no programme menu or temperature-in-degrees selector in the manual. |
| Dimensions | 395 × 325 × 270 mm | Allow counter space and clearance for the hinged lid and steam. |
| Weight | 5 kg | More portable than larger MultiFry variants, but still a substantial countertop appliance. |
| Cooking modes | With or without the paddle | Use the paddle for foods that benefit from movement; remove it for intact pieces. |
De’Longhi still maintains an FH1130 support centre with downloadable instructions. Check the complete suffix and product number on the rating label before ordering parts or relying on region-specific electrical specifications.
How the FH1130/1 actually operates
The FH1130/1 is not controlled like a modern digital basket fryer. De’Longhi’s instructions describe an on/off button, a bowl-position safety interlock and a lid that briefly stops ventilation when opened. Cooking begins after the correctly seated bowl is loaded, the lid is closed and the appliance is switched on.
Some variants include a removable countdown timer. That timer sounds two sets of beeps at the end, but the manual explicitly says it does not switch the appliance off. The user must press the main on/off button. Treat the timer as an alert—not as unattended automatic shut-off.
The manual does not provide an adjustable temperature range or named automatic programmes for this model. Recipe outcomes depend on food quantity, paddle choice, oil measure and cooking time. Claims that the FH1130/1 has intuitive temperature controls or guarantees “perfect results” are therefore misleading.
Capacity and manufacturer cooking times
De’Longhi’s current MultiFry capacity guidance and the official cooking table distinguish fresh from frozen potatoes:
- 1.5 kg fresh chips: oil measure level 4, approximately 40–42 minutes.
- 1 kg fresh chips: oil measure level 2, approximately 30–32 minutes.
- 1.25 kg frozen chips: no added oil, approximately 36–38 minutes.
- 500 g frozen chips: no added oil, approximately 20–22 minutes.
These are manufacturer table values, not our test results. The fresh-potato figures use unpeeled weight. Cut size, moisture, starting temperature and the exact food can change the time, so do not treat the potato maximum as a universal capacity for casseroles, meat or wet ingredients.
When to use the paddle
| Food style | Paddle? | Reason |
|---|---|---|
| Fresh or frozen chips | Yes | Continuous movement helps expose different surfaces to the hot air. |
| Risotto, braised dishes or sauces | Usually yes | The paddle mixes ingredients as they cook. |
| Chicken drumsticks, chops or burgers | No | Intact pieces should be turned manually as directed in the cooking table. |
| Fish fillets or scallops | No | Manual turning avoids damaging delicate pieces. |
| Flat-bowl baking | No | A compatible paddle-free bowl provides a level base for cakes, pizza and quiche. |
The paddle begins turning a few minutes after cooking starts. That delay is normal. If it does not move immediately, wait before diagnosing a fault. Even without the paddle fitted, the centre pin may still rotate after the same delay.
Safe setup and first use
- Match the local supply to the appliance rating plate and use an efficiently earthed socket.
- Wash and thoroughly dry the bowl, paddle and removable lid section before first use.
- Do not preheat the appliance empty and do not run it without food.
- Keep ventilation openings unobstructed and take care around hot steam from the vents.
- Never exceed the bowl’s MAX liquid level or oil-measure level 5.
- Move the cooker by its lifting handles, not by the bowl handgrip.
- Press the main on/off button when cooking is complete; the timer alone will not stop the appliance.
These instructions come from De’Longhi’s official FH1130/FH1100 manual. The appliance body, lid and accessible surfaces become hot during use, so let them cool before cleaning or moving the unit.
Cleaning without damaging the ceramic coating
Unplug the appliance and let it cool. Remove the bowl, paddle and removable lid section, then wash them in hot water with neutral washing-up liquid. Dry the parts and the area beneath the bowl thoroughly before reassembly.
De’Longhi says the bowl is dishwasher-safe, but the same manual warns that frequent dishwasher washing can reduce the ceramic coating’s properties. Gentle hand washing with a soft cloth is the cautious default. Do not use sharp, metallic or abrasive tools, immerse the appliance body, or place the body under running water.
Clean the hot-air discharge grille without removing it. If food is sticking or the coating is visibly peeling, replace the bowl rather than scraping it with metal utensils.
Exact replacement bowls and model checks
Current De’Longhi accessory documentation identifies two relevant 80 mm bowls:
- DLSK100: bowl with automatic paddle, compatible with FH1130 and FH1130/1.
- DLSK102: flat-bottom bowl without the paddle bump, compatible with FH1130 and FH1130/1.
DLSK100 suits chips, risotto, stews and sauces that benefit from automatic stirring. DLSK102 provides a flat surface for quiche, cake, pizza, meat and fish. Photograph the rating label and original bowl before buying, because FH1130-family suffixes and regional product codes matter for electrical parts and service documentation.
For other family codes, see our De’Longhi MultiFry model-code guide. The larger, programmed FH1394 family is covered separately in our FH1394/1 programs and parts guide.
Troubleshooting common symptoms
The appliance does not start
Confirm the bowl is seated correctly and the lid is fully closed. Both conditions are part of the operating sequence. If the appliance still does not heat, the manual says the thermal cutout may have tripped and the relevant device requires manufacturer service.
The paddle is not turning
Wait a few minutes after cooking begins. The delayed start is normal. If it remains stationary, switch off and unplug the appliance, let it cool, then check that the paddle is correctly seated and the centre pin is free of food debris.
The timer reached zero but cooking continued
That is expected behavior: the removable timer is an alarm and does not turn the cooker off. Press the appliance’s on/off button.
Food browns unevenly
Check the load against the cooking table, confirm the paddle is appropriate for the food, and manually turn intact pieces where the table instructs. Avoid overfilling or blocking airflow.
Used-buying checklist
- Identity: verify FH1130/1 and the full product code on the rating label.
- Bowl: reject deep scratches, flaking ceramic coating or a distorted handle.
- Paddle: inspect the paddle, centre pin and drive for cracks or excessive play.
- Lid: check the hinge, latch, removable window section and safety engagement.
- Timer: if fitted, confirm it counts down and beeps; remember it is not an auto-off control.
- Heat and fan: test operation with food present and stop if there is a burnt electrical smell or supply trip.
- Parts: confirm whether the sale includes the paddle bowl, flat bowl, oil measure and removable timer.
Verdict
The FH1130/1 remains useful for owners who want a simple bowl-style cooker that can stir chips, risotto and sauces automatically. Its practical strengths are the 1.5 kg fresh-potato capacity, removable paddle, transparent lid and availability of both paddle and flat-bottom bowls.
Its limits are equally important: there is no documented programme menu or direct temperature selector, the timer does not switch the cooker off, and the ceramic bowl benefits from gentle hand washing. It is better suited to someone comfortable following cooking tables and checking food than to a buyer expecting a set-and-forget digital basket fryer.
Frequently asked questions
What is the FH1130/1 capacity?
De’Longhi specifies up to 1.5 kg of fresh potatoes by unpeeled weight and 1.25 kg of frozen potatoes. Those values should not be treated as universal capacity for every food.
Should I preheat the FH1130/1?
No empty preheating: the official manual says not to preheat the appliance when empty and not to operate it without food.
Does the timer turn the appliance off?
No. On variants with the removable timer, it sounds an alert but does not switch the appliance off.
Can the bowl go in the dishwasher?
The manual lists the bowl as dishwasher-safe, but warns that frequent dishwasher washing can reduce the ceramic coating’s properties.
Which replacement bowls fit FH1130/1?
De’Longhi currently lists the DLSK100 paddle bowl and DLSK102 flat-bottom bowl as compatible with FH1130 and FH1130/1.
